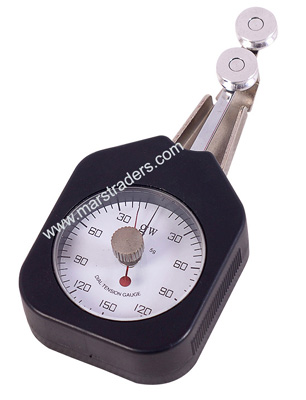

Mechanical Yarn Tension Meter

Very accurate and easy to use



                                                                      Click Image Enlarge View

This Mechanical Yarn Tension Meter to determine the tension and tension variation of running yarns is a instrument which applied in textile industry. And it also could test the Small metal lines. Characteristic: Referred the principle of the pulley block. Guide wheel is precision bearings with small resistance; make the measuring result more accurate.

Accuracy: 1

Weight: 0.2 kg

Dimension: 14.5x7.5x4.5 cm

Model Rangegw Minimum scale valuegw
DT-25 25-2-25 1
DT-50 50-4-50 2
DT-75 75-5-75 5
DT-100 100-10-100 5
DT-150 150-10-150 5
DT-250 250-20-250 10

How to use



Dimensions
