DESCRIPTION:
Used for Inks Latex Adhesives dyes and chemicals (Solvent base) Polymer Solutions Oils Paints and Coatings Solvents Cosmetics Dairy Products Pharmaceuticals Juices, etc

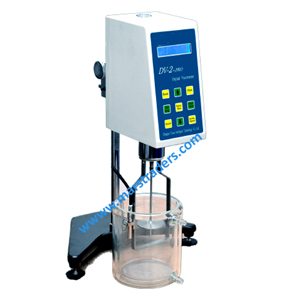

Digital instrument for the measuring of viscosity with all data reading on display, serial , output RS-232C to connect a PC, DV-Loader software and analogical output 0-1 Vdc. Intermediate model ready to use PC for data process. Full interchangeable to Brookfield accessories range. The LCD display shows simultaneously: viscosity in cP or mPas, torque %, rpm, installed spindle, temperature in °C or °F, shear rate, shear stress.


Display information: Viscosity (mPa.s), Temperature: C , Speed/Spindle, Shear Rate/ Stress,

Built in option: Timed tests, Choice of speed, RTD temp probe
Speed selection: Appropriate rg of speeds with easy selection
Accuracy: ±1.0%of rg
Repeatablity: ± 0.5%
Auto Rg showing: Full scale rg, Max viscosity measured,
Spindle/Speed Combination
Complete set of LV spindle
DV Loader software
DV gather and analysis software
RTD temp probe
Operation manual

Feature:
DV Gather Software is used to get total control of your instrument and test parameters
Shear Rate/Stress With Special Spindles
Bi-directional RS-232 PC interface
Configurate RTD Temperature Probe
Stepping Motor means Accurate, reliable operation
 Direct readout of all measurement parameters
Auto Range Showing
Time Function for measurement
Sound alarm at under 20% Torque
Linear calibration
Wide range power supply:100V-240V
Technical Parameter:
Range: 6-6,000,000 (mPa.s)
Speed: 0.1- 200rpm
Spindles: L1, L2, L3, L4
Accuracy: ±1 %（FS）
Repeatability: ±0.5%
Power: 100-240V, 50-60Hz
