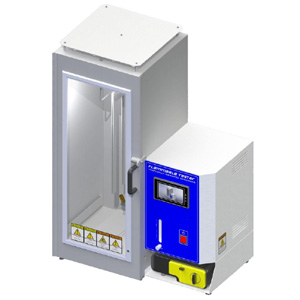

Vertical Tent Flame chamber

The Vertical Fabric flammability tester is used for testing trend of after flame, flame retardant and carbonization of camping tentage.. It is automatically determine the flammability resistance to a vertical flame of camping tentage.

 Characteristics:

 1 . Use PLC touch screen control

 2.   Electric automatically burner, light clocking set freely from 0-999.9s.

 3.   Burning chamber is stainless steel.

 4.   Flame height can be adjusted

 5. Automatically burner orientation

Standards: CPAI 84 Flammability Test Method Wall and Top Material



Technical Parameters :











Vent Holes

Top 16 pcs, Two sides, each 6 pcs, diameter: 13mm









Time range and accuracy

0.0-999.9S, resolution 0.1S (adjustable)









Burner

Inner diameter: 5mm, barrel: 75mm









Distance between burner and

20mm



specimen













Flame Height

38mm (adjustable)









Ignition time in test

12S (adjustable)









Specimen Size

300x70mm



Inner dimension of clamp

360x50mm



Load weights

50g, 100g, 200g, 350g



Dimensions

600 x 400x850mm









Weight

35kg









Power source

110V/220V, 50Hz/60Hz
