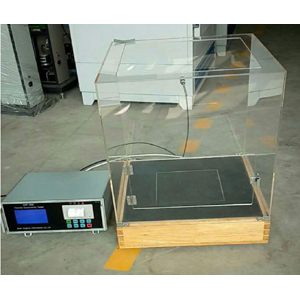

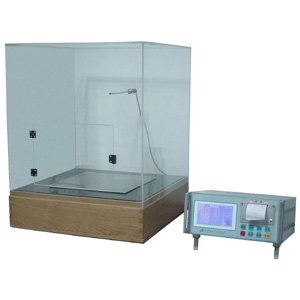

Thermal conductivity tester, to
determine the tog, clo, thermal conductivity of various
fabrics, quilting products, and other heat
insulation materials. Microcomputer controlled, data
processors and quality temperature sensors are used,
ensures high test speed and precise test result. All
performances of the sample (Include thermal conductivity,
tog value, clo value) can be directly calculated. Test data
and result is displayed on the large LCD display, and can
be stored or printed out.
Standards: ASTM D1518,
JIS L1018, ISO 11092
Main technical parameters:
1. Heating Plate Temperature Adjustable Range : 20-50°C
2. Range of Pre-heating Time: 0-99 Minutes
3. Cyclic heating period setting range: 1-9 times
4. Testing times: 1-9 times
5. Resolution of Temperature: 0.1°C
6. Parameters of heating plate: Testing plate 40W, Guard plate 120W, Base
plate: 40W
7. Dimension of testing plate: 250×250 mm
8. Dimension of testing platform: 510×51×640 mm
9. Dimension of controller: 300×345×150 mm
10. Power: AC 220V±5%, 50Hz 30W
