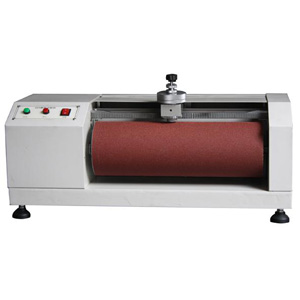

Sample Buff Machine applies to the abrasion test of resilient material, rubber, tyre,
transport belt, synthetic leather. It's effective and easy to operate.
BS-903 DIN53516 ISO-4649 GB/T 9867 SATRA TM174 JIS-K6264, EN12770, ISO 20871.
Specimens size: Φ16±0.2mm, 6-14mm (thickness)
Fixture load: 2.5N
Weight loadL: 2.5N, 5N (Can combined with fixure load to be 10N)
Fixture lateral displacement: 4.2mm/wheel each lap
wheel diameter: 150mm±0.2
wheel length: 460mm
wheel rotate speed: 40±1r/min
Travel reservations: 40m/20m
Abrasion speed: 0.32m/sec
Dip angle: 3° the angle of the specimen back shaft with vertical roller face
Dimension: 73cm ×31cm ×35cm
