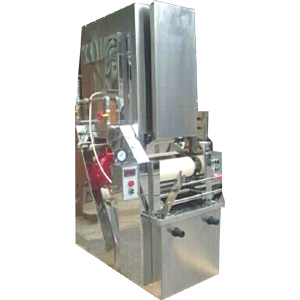

Suit able for saturated steam, the time for sample
cloth from the tank through t he roll into the steamer is very short,
to avoid vulcanization and Shilling dyes are air-oxidized before react, provide
the best reproducibility and stability.
1. Stagger in the steamer time to stay at least 20-120 seconds, can adapt to the
different thickness of cloth, widely used.
2. The whole machine is exquisitely designed, which does not occupy more space
than the traditional type.
3. The required guide cloth is short, easy to operate.
4. The machine is made of high-quality stain less steel S US304.
5. With mechanical break.
6. 350 mm working width.
7. 1.5 liter impregnation tough capacity.
8. Pneumatic pressure system with cylinders by nitrile rubber with 70 +/- 3
9. Dimension of roller: diameter: 126mm, length: 350mm
10. Pressure method : pneumatic, pressure：1.0 kg/cm²-5 .0 kg/cm²
A. Use temperature: saturated steam temperature ( max up to 105℃)
B. Steam: extern al connect inlet DN15. Max 5kg/cm2 s team in, 5kg /hour
C. 15 kg/hour direct steam.
D. Test cloth path: Entire 6 meters, through time 20-120 seconds, frequency
E. Temperature indication: dig ital
F. Inlet seal: air seal type.
G. Outlet seal: water seal type.
H. Dimension: 1400×1800×90 0mm
I. Weight: 280 kg
