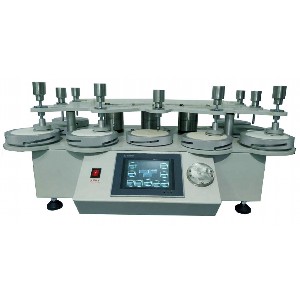

Martindale Abrasion and Pilling Tester

Introduction :

 Application scope of XHF-05 Martindale Abrasion & Pilling Tester : suitable for the wear-resistance and grinding test under certain pressure of woven and wool-blend fabrics, Leather, knitted goods and non-woven fabric

 Standards:  ISO5470, IWS TM112/196, DIN53863/53865, BS3424/5690, BS EN 388/530, JIS L1096, ASTM D4966/4970 , ISO17079-2, ISO 12947, ISO17704, ISO 20344, ISO 17076-2, SATRA TM31 and so on.



Features of touch screen Martindale:

 1.Machines with two Lissa-jous trajectory.

 2.Using color touch-screen operation, PLC control, each working position can be controlled separately.

 3.  Motor overheat protection, convenient operation.

 4.  There is a alarm when the test is finished.

 5.  Data can be restored after the power failure.





Technical Parameters:

 Work-station number : 6 or 9 pcs

Counter display : Pre-set counter display: 0-999999

Cumulative counter display: 0-999999

         Abrading table diameter : 120mm



Test pressure (abrasion test)



A:  cloth specimen clamp:198g +/- 2g



B:  textile specimen hammer:395g +/-2g (Equal to 9Kpa)



C: furniture deck specimen hammer:594g +/-2g (Equal to 12Kpa)



Pressure test (pilling test)



A:  cloth specimen clamp:155g +/-1g



B:  textile specimen hammer:260g +/-1g



Weight of Load hammer: 2385g +/-10g



Dimension: 850mm\ x 600mm x 400mm



Weight: Machine 120kgs Accessories box: 22kgs Voltage supply:220V/110V, 50HZ/60Hz







Download Brochure

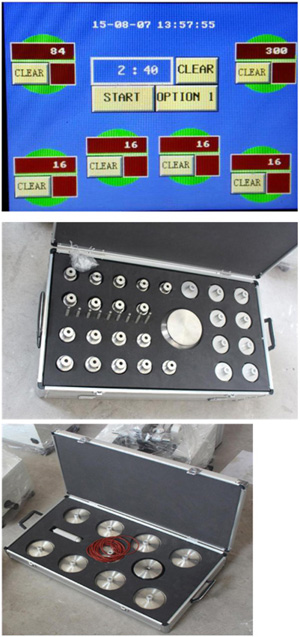

Packing list

No.

Name

Quantity

Remark









1

Abrasion tester

1

Main body









2

Pin Shaft

6 or 9











3

Hammer

1











4

Lissa-jous trace pen

1











5

Dia 140 sample cutter

1











6

Dia 38 sample cutter

1











7

Dia 90 sample cutter

1











8

Weights

12 or 18

395g, 594g each 6 pcs









9

Specimen clamps

12 or 18

dia38mm, dia90mm each 6 pcs









10

Abrasion table

6 or 9











11

Specimen fix ring

6 or 9











12

Rubber rings

12 or 18

For installing dia90mm specimen









14

Load disc

6 or 9











15

Accessories Case

2

Aluminum-Alloy Case









Download Brochure
