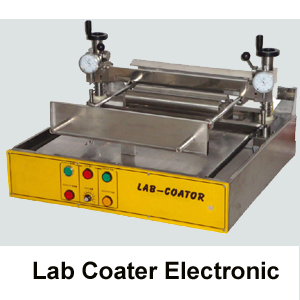

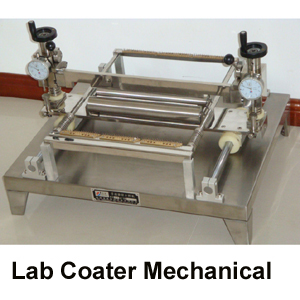

Lab Coater Electronic & Mechanical
The Lab Coater is the optimum combination of dryer and laboratory coating table.
Various kinds of material samples are coated in the same run by the coating
device and heat-treated in the dryer.
The coating is applied either by a floating, roller or rubber blanket knife.
Multiple coatings which do not require reloading are also possible.
Max. Coating area : 300x400mm
Coating thickness: 0-5mm,
Resolution ratio: 0.01mm
Electric coating, coating speed: 0-4m/min, double direction adjust speed
(Electronic model has this function)
Removable pin frame, the pin frame can be put into the oven with the textile
