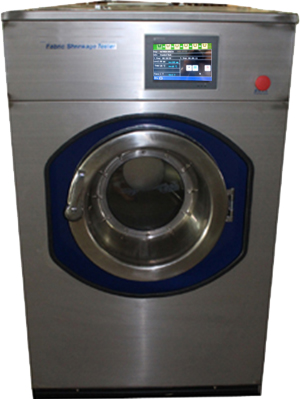

Automatic Fabric Shrinkage Tester (ISO-6330-2012)



This Fabric shrinkage tester is used for testing the shrinkage and relaxation after washing of various textiles such as cotton, wool, silk, linen, chemical fiber, knitwear, costume etc. It is fit for the factory and testing center with the long-term test.



Standards:ISO-6330-2012, ISO 5077, IWSTM31, BS4923, EN25077/26330, JISL1909, FZ/T70009.



 Features :

 The apparatus used are for industrial design, suit to the harsh long continuous testing requirements

Suspended inner canister exclusive used, smoothly operation without vibration

Include 12 groups washing programes, users can prepare 6 groups their own shrinkage procedures, and provide programs storage



Variable frequency control technology used, to protect the electrical safety and the smooth operation.

Large touch screen display, figures show clearly

Using high-precision pressure sensors, to ensure that accurate and reliable water level.

 Outside and inside fully use stainless steel.

Technical parameters:

Category

Horizontal roller type, front door feeding mode

Inner layer roller

Diameter : 520±1mm

Depth: 315±1mm

Inner & outer roller

gap

2.8cm±0.1cm

Lift vane quantity

3 PCS 120° even distribution

Lift vane height

53mm±1mm

Rotation action

Normal: clockwise rotation (12±0.1)S, stop (3±0.1)S

anticlockwise rotation (3±0.1)S, stop (12±0.1)S

Soft: clockwise rotation (3±0.1)S, stop (12±0.1)S

anticlockwise rotation (3±0.1)S, stop (12±0.1)S

Rotating speed

Washing time: 52r.p.m

Spin : (500±20)r.p.m

Water level control

Low level:10cm , High level:13cm

Fill water time

< 2min (water in high level 13cm

Drainage duration

< 1min (water in high level 13cm)

Setting range to

water temperature

Room temperature to 99 (accuracy: ±1)

Heating power

5.4kw

Washing capacity

5kg

External Dimensions

850mm×750mm×1200mm

Weight

140Kg

Power source

Three-wire four-phase 380V±10% 50Hz
