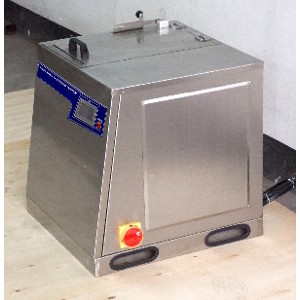

The washing fastness tester Gyrowash, to determine color fastness to washing or dry cleaning to washing fastness methods, it complies with ISO, BSI, AATCC.
Application:
Washing Fastness Tester, to determine color fastness to washing or dry cleaning to ISO, BSI, AATCC and Marks&Spencers standards.
Available in different sizes such as portable washing fastness tester, etc. The washing fastness tester uses stainless steel rotor to holds washpots on each of four sides and rotates at a constant 40 rpm (+/-2 rpm). Washpots are preheated in appropriate test solution, structure wholly made of very strong stainless steel
Colored touch screen display and PLC control, containers are sealed with either a Neoprene rubber gasket or optional Teflon gasket.
To offer a reliable and safe washing fastness test, Washing fastness tester equipped with water-lacking alarm, protection device when opening door, Test-finished alarm, Automatic shutdown with audible warning etc.
Standard: ISO105 C01-C06, M& SC4A. 5.37. P3B, IWSTM 7.115.177.193.240, 241, AATCC 2, 3, 28, 61, 62, 86, 132, 151, 190, FTMS 191-5610/5622, BS 1006, NEXT
Specifications:
Rotation speed: 40+/-2rpm
Quantity of positions: 6 Pcs 550ml+6Pcs 1200ml
Size of ISO washpot: 550ml 75mm dia x 125mm(3.0 in x 5.0in)
Size of AATCC washpot: 1200ml 90mm diax 200mm(3.5 in x 8.0in)
Temperature : Max 95℃ Adjustable
Running time: Adjustable
Packing list of XHF-13
|
No. |
Name |
Qty |
Remarks |
|
|
|
|
|
|
1 |
Washing Fastness Tester |
1 |
Main body |
|
|
|
|
|
|
2 |
550ml washpot |
6 |
Be Installed on the machine |
|
|
|
|
|
|
3 |
1200ml washpot |
6 |
Be Installed on the machine |
|
|
|
|
|
|
4 |
Stainless Steel Balls |
150 |
|
|
|
|
|
|
|
5 |
Stainless Disks |
12 |
|
|
|
|
|
|
