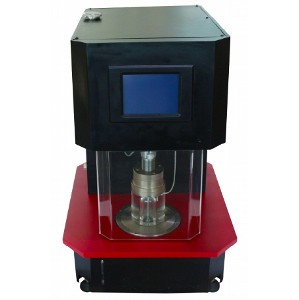

FABRIC AUTO BURSTING STRENGTH TESTER

The scope of application :

Used in a variety of textiles , non- woven fabric , leather and other materials , while force ( flexible diaphragm law ) in latitude and longitude and in all directions , expansion force and dilation of the performance measurement .
Related standards :  ASTMD3786, ISO 13938.1
Instrument characteristics :
1 . In line with the new national standard , multiple test chuck
2. Touch screen operation, in both English and Chinese human-machine interface.  Support for on-line communication
3. The specimen blessing with pneumatic gripper system, labor-saving test specimen does not slip .
4. The professional development the supporting test system
5. Hydraulic test method





Technical Parameters :

       1. The measuring range: 1% ( full scale to 100 %)     Max: 2.00Mpa,  Max. 10.00 Mpa



Min Division Value:  0.001Mpa         0.003Mpa



2 . The elastic diaphragm thickness : ≤ 2mm



3 . The test area : 7.3 cm2 ( Φ30.5mm ) 10 cm2 ( Φ35.7mm ) of 50cm2 ( Φ79.8mm ) , 100 cm2 ( Φ3112.8mm ) ( optional )



4 . The maximum dilation : 75 ± 0.02mm



5 . The pressure rate :10-500ml / min



6 . Test methods : constant speed burst , constant pressure , constant expansion ratio



7 . The test unit : kpa, kgf / cm2, atm , mmHg , lb/in2 free conversion



8.  The output of the form : Print output , display output , support on-line communication



9.  Power supply : AC20V 50Hz 200W
