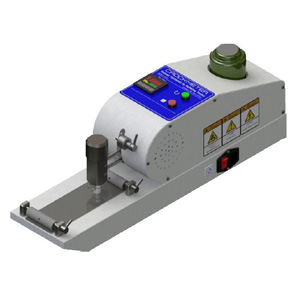

Electronic Crock Meter



Used for testing the fastness to dry or wet rubbing and the fastness to brushing of all kinds of colored textiles, motorized operation, auto stop when counts reach pre-set counts..



Features:

1.  Adopt linear slide, running more smooth

2.  Rubbing head always keep horizontal, no matter thickness of specimen,

no adjust position of rubbing head, easier operation.

3.  Adopt block pressing method, better clamping specimen.



 Standards: ISO105-X12, D02, Bs1006 D02, DIN54021, IWS Tm165, JIS K6328. AATCC8/165





Technical Parameter :

Testing times

1-99999





Rubbing travel

104±3mm





Rubbing speed

60r/min





Rubbing pressure

9N





Rubbing head

Roundness :ф 16mm





External Dimensions

600mm×225mm×270mm





Weight

12kgs





Power

AC 220V, 50Hz
