Introduction :

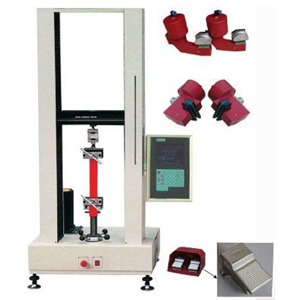

Double Column Tensile Tester
is a new generation of tester with innovative design,
convenient using, excellent performance and pleasing
appearance, this tester is special deigned in testing
textile with Manual and Pneumatic grips (Customer option)
Meet Standards:
ISO13934.1, ISO13934.2, ISO13937.2, ISO9073.4, ISO13936.1,
ISO13936.2, ISO13935.1, ISO13935.2, ISO 2062, ASTM D2256
ASTM D5034, ASTM D5035, ASTM D2261, ASTM D5587, ASTM D3936,
ASTM D4964..................ETC.
Test Function:
Constant Speed Tensile Test
Peeling Test
Tearing Test
Seam Slippage Test
Bursting Test
Definite Elongation Test Load Test
Definite Load Test Elongation Test
Elastic Recovery Test
Yarn Strength Test
Features:
Working pattern: CRE principle, controlled by large LCD,
equipped with an online interface, can be also controlled
by computer with professional textile and yarn testing

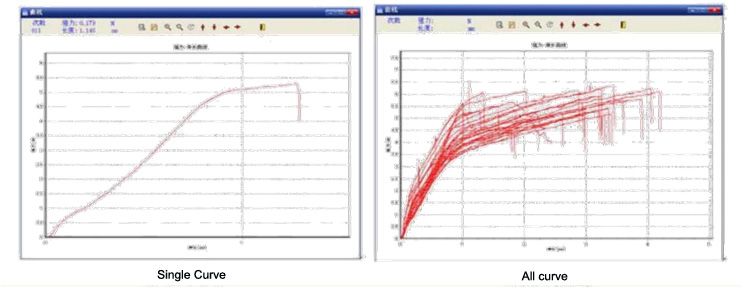

software., real time display graphs, breaking load,
elongation, with PC powerful analysis system, also can give
yield load, yield elongation, CV% of load...etc.
Adopt imported sensor from American Tedea.
AC servo drive system, ball screw, to do a wide range speed
setting, suitable for all kinds of material mechanical
performance testing.
According to the customer need to provide a variety of
standard test functions, can also be customized according
to customer requirements. With different clamps can perform
different test perfectly.

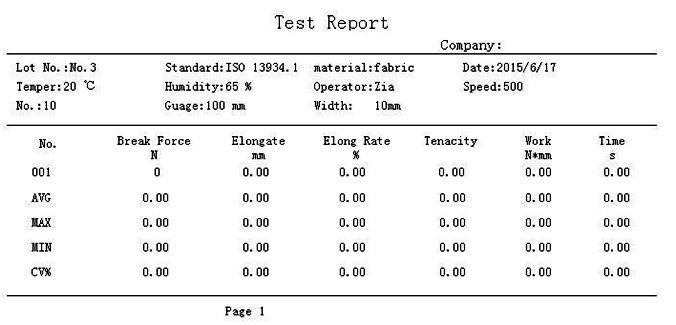

All testing results and graphs can be output into Excel and
be printed accordingly. With the protective function of
overload, over current, over voltage, displacement upper
and lower limitation, also with emergency stop.
Multi Unit is selectable: CN, N, Lb, g, Kg, mm, Inch

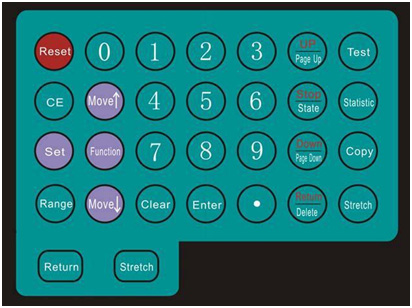

Panel of controller:

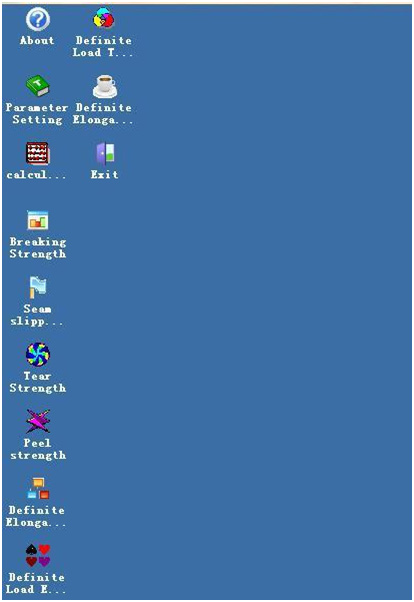

Professional software support:
Technical Parameter:
Max Test Force: 5KN
Precision of measurement strength : ±0.5% of the indicated
load value
Gauge Length: 25-500mm (adjustable)
Jog speed: 2mm/min-1000mm/min
Return speed: 2mm/min-1000mm/min
Effective stroke: when gauge length is 100mm, the max
elongation is 700%
(700mm). Accuracy of position measurement: better than
0.1mm
Machine stiffness: more than 28KN/mm
Machine dimension:
765×530×1700mm Power: 220V/110V,
50Hz/60Hz Machine weight: 220kgs
Standard Configuration: Textile Tensile Tester, Textile
Tension Grips, Computer Software, Power Line, Calibration
Weight
Optional: other grips for other test (such as bursting
test, tearing test, peeling test..etc)
