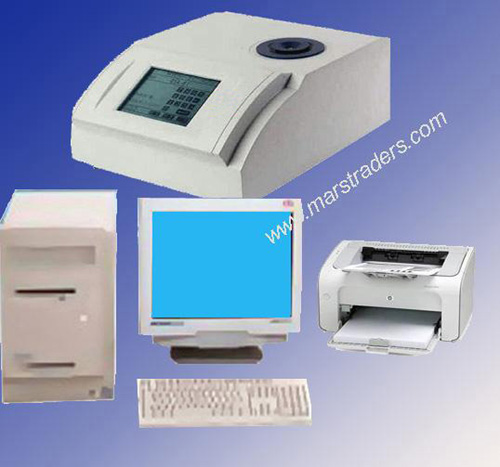

Digital Melting Point Tester (Touch Screen)

Click Image Enlarge View

The photoelectric automatic detection, lattice graphic LCD and touch screen key technology, has the melting curve automatic recording, initial melt, they fuse automatic display function. The temperature control system adopts precision platinum resistance as temperature detecting element, the application of digital PID control and PWM temperature control technology, improving the melting point measurement precision and reliability. The instrument can automatically save work parameters and storage measurement results function, also can through the USB interface or RS232 interface and PC machine build a communication. The apparatus adopts pharmacopoeia prescribed capillary as sample tube.


Techniques:
1. Melting point measurement range: room temperature to 400 C
2. Initial temperature setting time: 50C  ~ 400 C not more than 5 min
400C to 50 C is not more than 7 min
3. Minimum temperature display over-error: 0.1C
4. Linear heating rate: 0.1C  --min 20.0C  / min, arbitrary continuous optional
5. Measurement melting point accuracy: 200C or less: + / - 0.5 C
200 C or more: + / - 0.8C
6. Repeatability: 0.3C
7. Standard capillary size: outside diameter Φ 1.4 mm Inside Φ 1.0 mm
9. Power: 220 v 22 v, frequency 50 hz, 100 w
10.Dementions:  (L X W X H) : 360 mm * 290 mm * 170 mm
11. Weight: 10 kg
12. Communication interface: USB and RS232 serial interface

Optional: PC, Monitor and Printers.
