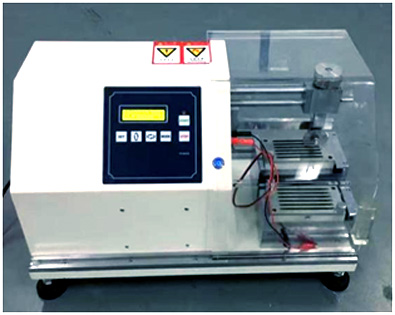

Blade Cut Resistance Tester

Blade Cut Resistance Tester is used to determine the protective capability the safety glove against cutting. .

A driving rotation round blade under a specified load cuts the glove held by the fixture of tester to and fro. After test, compare it with its original statuses to get the results.

Standards: EN388 6.2

Technical Parameter:

Load on blade
5±0.05N
Max.cutting speed
10cm/s (adjustable)
Horizental moveing distance
50mm
Blade Dimension
Diameter: 45±0.5mm, Thickness: 3±0.3mm
Counter
1-99999
Specimen holders
2 Pcs
Blades
6 Pcs (1 one machine, the 5 pcs is as spare blade)
Conductive rubber
4 Pcs
Note: We will update the cut resistance tester similar machine from Satra UK
