Introduction :

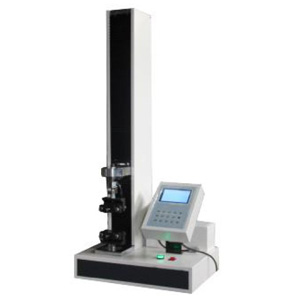

This Tensile Strength Tester is applicable in testing the rubber, plastic film, cable, fabric, paper, aluminum board and so on . It is ideal for high-capacity tension, compression, bend/flex, and shear testing, these machines are guaranteed to meet the relative requirements of ISO, ASTM, JIN, GB and many other testing standards.
Character :
1. Auto controlled, High performance governor system
2. Full open parameter setting
3. Software : Micro-computer and professional software controls, LCD displays data ,results, could store many test results.
4. High performance ball screw transmission and Servo motor system to make the machine running quietly
5. The test speed can be set automatically
6. The limiter can ideally protect the equipment, Stop when over load
7. The result can be statistical automatically
8. Automatically judge the test over, l after break, automatically returns to initial set distance
9. Can display real time curve
10. With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop.
11. Mini Printer
Technical Parameter :
Load cell :5000N
Measurement range: 2%-100% (100N-5000N)
Type : Single Arm
Tensile Space: 600mm(The distance between upper clamp and lower clamp)
Strength Precision : 1% of applied value
Speed : 0.1mm/min – 500mm/min
The accuracy of speed : ≤1%
Resolution of the replacement: better than 0.01mm
Strength Resolution : 1/100000
Power : 220V±10V 50HZ, single phrase
Dimension: 520×380×1450mm
Weight: 110kgs
